DESCRIPTION

Basic Info

Model NO.	CGN40-40-15
Customized	Customized
Voltage	220V
Composition	Filling Machine
Processing Material	Fruit/Concentrated Juice Powder
Model	40-40-15
Cap Type	Ropp Cap, Crown Cap, Normal Cap
Type	Weighing-Type Filling Machine
Automatic Grade	Fully Automatic
Material Type	Liquid
Filling Valve Head	Multi-Head
Filling Principle	Atmospheric Pressure
Packaging Container Lifting Structure	Pneumatic Lifting
Structure	Rotary
Control System	PLC with Remote Operating System
PLC	Siemens (Germany) / Mitsubishi (Japan)
Valve	Water Valve
Capacity	2000bph-12000bph
Bottle Size	200ml to 2000ml
Delivery Time	90days
Transport Package	Wooden Case
Specification	Stainless Steel 304/316
Trademark	HY-FILLING
Origin	China
HS Code	8422301090
Production Capacity	3000-40000bph

Packaging & Delivery

Package size per unit product 12000.00cm * 2300.00cm * 2500.00cm Gross weight per unit product 10000.000kg

Product Description

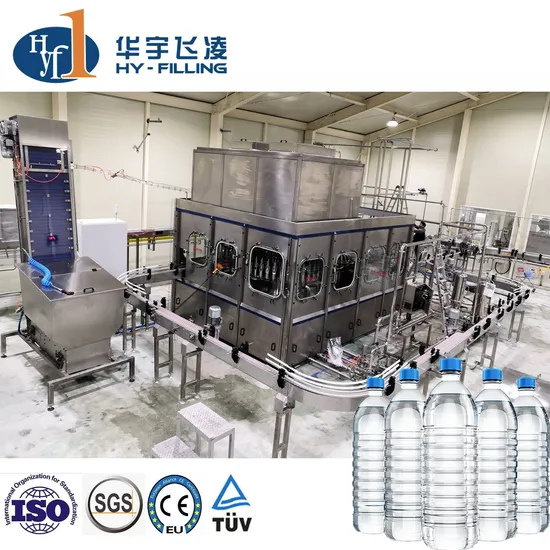

This series of pure/mineral/drinking water filling machine are applied to the production of pure water, mineral water, with optional capacity from 2,000 to 48,000BPH. The rinsing, filling and capping will be finished just by this one machine.

Detailed Images

	Rinser All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and cleaner 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing 304/316 stainless steel washing pump
Filler 304/316 Stainless steel high precision filling nozzle Filling volume adjustable in fine rank, same liquid level after filling All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean 304/316 stainless steel filling pump
	Capper Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304/316 stainless steel construction No bottle no capping Automatic stop when lack of bottle

Technical Parameters:

Number of Filling Valves	8, 12, 16, 24, 32, 40, 50, 60, 72, 80
Filling Speed:	2,000-48,000BPH (500ml)
Type of Bottles	PET Bottles of various shapes
Bottle Height	150-320(mm)
Bottle Diameter	φ50-110(mm)
Filling Temperature	ambient temperature
Filling Principle	Gravity Filling
Filling Product	mineral water, purified water, drinking water, flavor water and low alcoholic drinks.

Our

Symbolic Projects:

1. 72 heads Glass Bottle Carbonated Soft Drink Aluminum (ROPP) Cap Filling System 2. 72 heads PET Bottle Carbonated Soft Drink Filling System3. 24000BPH Hot Filling Combi System 4. 24000BPH Water Filling Combi System 5. 18000BPH Pulp Juice 4 in 1 Filling System ...

We provide the Complete turnkey project for beverage production line includes:

1. Water Treatment System (Water Filtration)
2. Preparation/Processing System (Mixing System for Drinks like CSD, juice etc)
3. Injection molding machines (for pet preform)
4. Bottle Blowing Machine (Making plastic bottles)
5. Air Conveyor (Transport empty bottles)
6. Filling Machine (Filling product into bottles)
7. Cap elevator (Transport cap)
8. Blow dryer (Blow away water drops)
9. Flat Convey (Transport bottle)
10. Code Printer (Printing the date on the bottle water)
11. Labeling Machine (Labeling for bottled water)
12. Bottle Packing Machine (package the bottle water)
13. Palletizing Machine (to palletize the cartons)

Related Machines for the Complete Line

	1.Water treatment Water treatment is equipped for pure water, mineral water, and water used in beverage drink. It contains RO, natrium filter, ultra filter, activated carbon filter, ion exchanger, ozone processor etc.
2.Bottle Blowing Machine Divided into: semi-automatic bottle blowing and full automatic bottle blowing machine. Suitable for: PET bottle. Bottle size: 500ml-2L
	Filling Machine The machine is combined with rinsing, filling and capping, which special designed for PET bottled. It is stable characteristic, advanced technology, nice appearance and complete function.
4.Filled Bottle Conveyor System Conveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
	5.Packaging System Customized: Sleeving Label Machine, Film Shrink-wrapping Machine, Palletizing machine, Date code printer etc.
