DESCRIPTION

Basic Info

Product Description

Product Description

The main volume of the system is composed of transmitting equipment,conveying pipeline,gas separation equipment,gas source and purification equipment.Under certain conditions,air is used as cutting medium to transport powder and granular solid materials in pipelines.

Material conveying is the key to realize automation of blending and mixing production line. The conveying system occupies a large proportion in the PVC automatic mixing and mixing system:Transfer of raw materials from the bag opening station to the over silo above the batching scale;Transfer of finished material from mixer to finished material silo;Transfer of finished material from finished product silo to extruder.

There are two main forms of more used here: spiral conveying and pneumatic conveying.And pneumatic conveying can be selected according to the actual field, such as thin phase positive pressure, thin phase negative pressure, dense phase positive pressure and other ways.

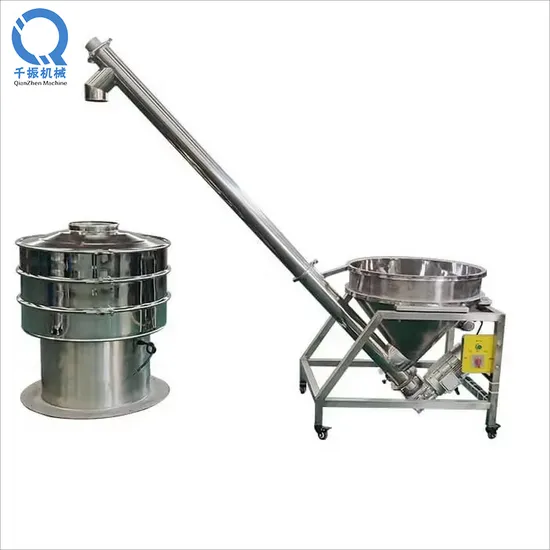

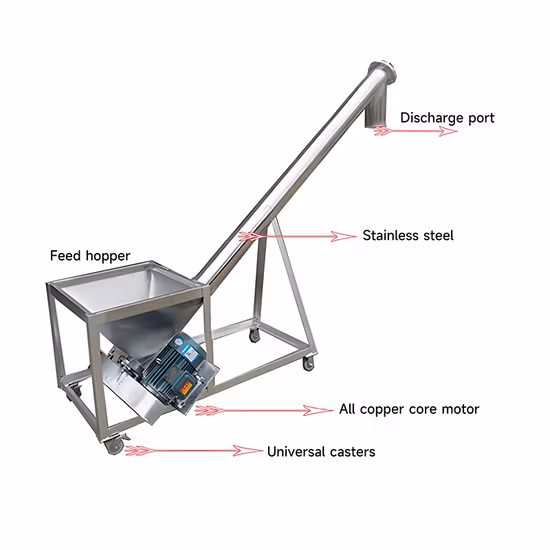

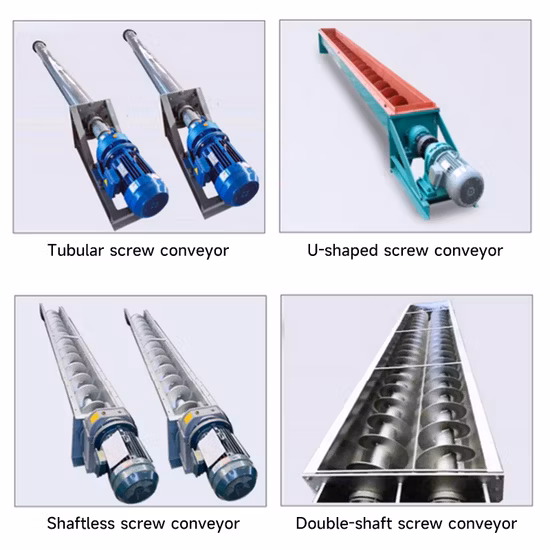

Screw conveyor is composed of motor, reducer, screw body.Simple structure and reliable operation.However, the cost is higher when the transportation distance is longer.

The core part of dense phase pneumatic conveying system: low noise, long conveying distance, low energy consumption, large conveying capacity, low pipe wear and so on.It will not form blockage in the pipeline and there will be no material segregation and stratification.It is especially suitable for conveying mixtures and the use of boosting devices.It can also effectively reduce the material forward speed.

Dilute phase positive pressure pneumatic conveying system:no special compressed air source is needed and the investment is small.But the noise is high, the conveying distance is short, in the conveying process is easy to form the material segregation and stratification.

Dilute phase pneumatic negative pressure conveying system:The advantages and disadvantages are similar to those of lean-phase positive pressure conveying, but it is less likely to cause blockage and has a smaller investment.

Our Company

Zhangjiagang samsara machinery co.,Itd.is a professional designer and manufacturer of materials' handling system.We provide a turnkey solution for energy-saving and environmentally-friendly materials' conveying,automatic weighing and batching,mixing,storage and computer control systems.The main products are:large raw material storage silos,feeding station,tubular chain conveyor,pneumatic conveying system,screw conveying system,automatic weighing system,mixing unit,industry dust collectors,and crushing machines,mills and a variety of auxiliary equipment.

Packaging&Shipping

FAQ

Q:All of your products are made by your self or compacted via purchasing the others?

A: We have independent technical team who focus on making machines, all the products are made by our technical team.

Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.

Q:How do you make the quotation for clients?
A:The price is reasonable with stable machine quality .

Q: Are you trading company or manufacturer?
A: We are factory.We have the technical production team,and the workers are all very experienced.

Our services

After-sales service:

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.

Guarantee of quality :

We guarantee the goods are made of best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in the contract. Quality guarantee period is within 12 months from B/L date.

Installation, Debugging and Training:

We will dispatch our engineers to instruct the installation and debugging. Cost will be beared on buyer's side (round way flight tickets, accommodation fees and salary in buyer country). The buyer should provide his site assistance for the installation and debugging. The engineers will also train your workers for about 3 days.
